16-Lane Automatic Capsule Counting Machine

16-Lane Automatic Electronic Counting Machine Engineered for high-precision and high-speed bottling lines, this machine is designed to count and fill all types of solid dosages—including tablets, hard capsules, softgels, pills, and candy—into bottles of various sizes with 99.9% accuracy.

With 16 independent counting lanes and dual-nozzle discharge, this machine seamlessly bridges the gap between medium and high-speed production, serving as the ideal core unit for nutraceutical and chemical packaging lines in strict compliance with cGMP and FDA standards.


Product Detail

Product Tags

Specification

Model

TW-16

Capacity

20-80 Bottles per minute

Voltage

380V/3P 50Hz

 *can be customized

Power

1.2kw

Compressed air consumption

0.6Mpa  3.8L/min

Machine dimension

1,400x1,400x1,560mm

Net weight

550kg

Filling range

 2-9999 pcs (adjustable)

Applicable

00-5# capsules, soft gels, ф5.5-12 normal tablets, special shape tablets, coating tablets,ф3-12 pills

Function

Suitable for both tablets and capsules.

16-Lane high-speed counting and filling system saves the labor fees.

PLC control with touchscreen interface.

Adjustable counting quantity to meet different packaging requirements.

Automatic bottle detection, counting, and filling.

Automatic alarm and stop function when no bottle or product is detected.

Stainless steel construction with GMP-compliant design.Material contact area made of SUS316L.

Easy to clean, maintain, and operate.

Stable performance with low maintenance requirements.

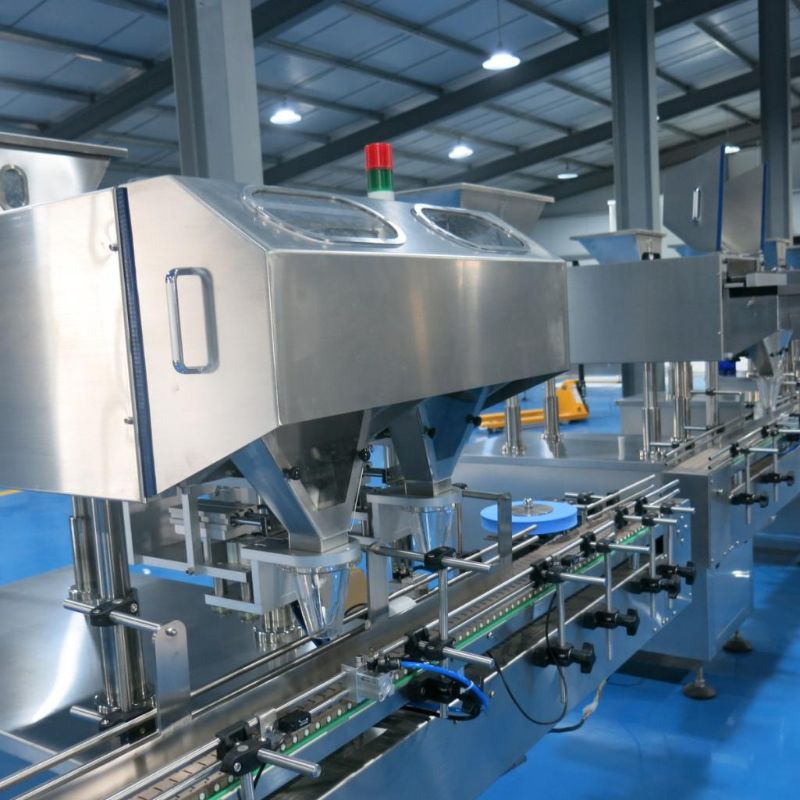

16-Lane Automatic Capsule Counting Machine1

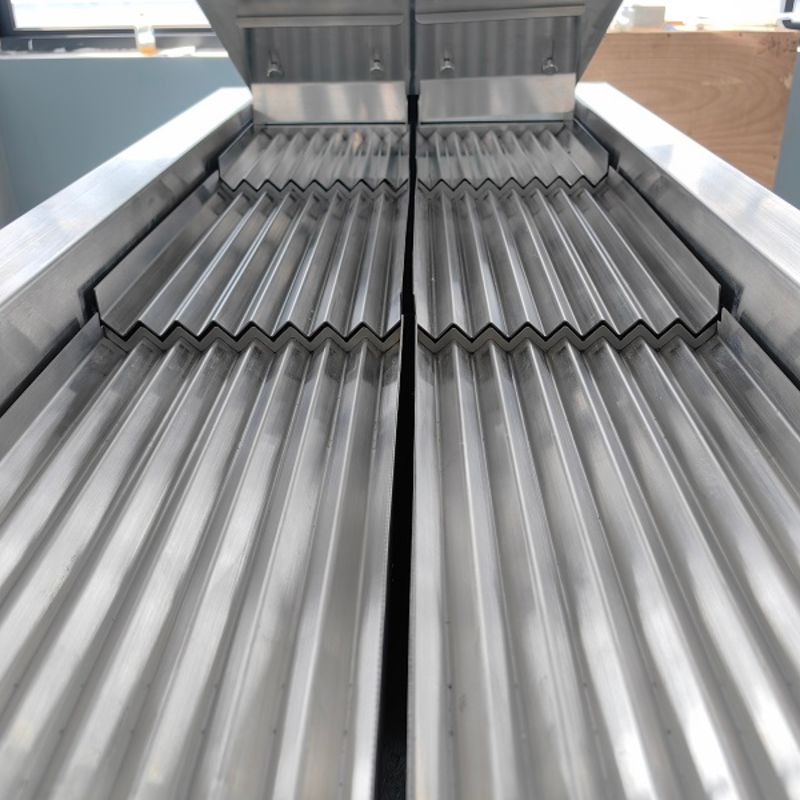

16-Lane Automatic Capsule Counting Machine2
