Automatic Tablet and Capsule Counting Bottling Line

Our fully automatic capsule and tablet counting and bottling line offers a complete A-to-Z solution for pharmaceutical and nutraceutical production. The line integrates automatic rotary table, bottle unscrambler, precise counting and filling, capping machine, induction sealing machine and labeling machine.

It is designed for maximum efficiency, it significantly reduces labor costs while ensuring high accuracy, consistency and GMP compliance. This production line is ideal for companies seeking fully automated, labor-saving, and cost-effective bottle packaging solutions for capsules and tablets.

Send email to us

Product Detail

Product Tags

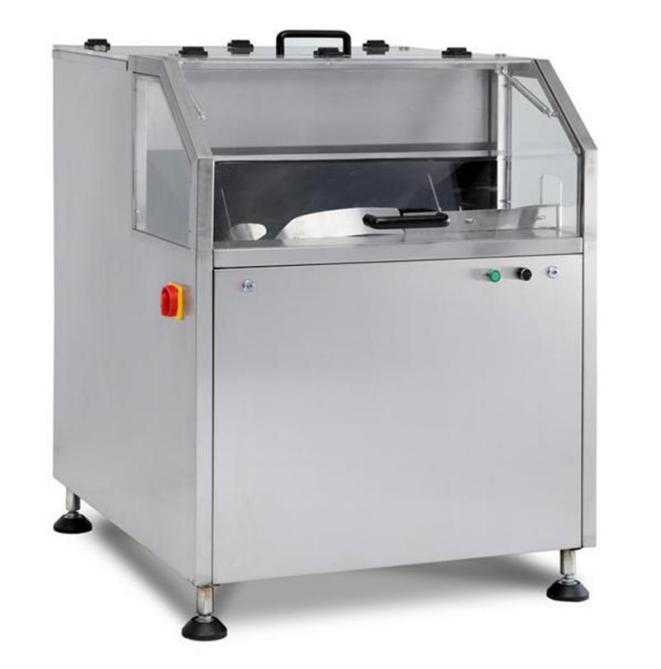

1.Bottle unscrambler

The bottle unscrambler is a specialized device designed to automatically sort and align bottles for the counting and filling line. It ensures continuous, efficient feeding bottles into filling, capping and labeling process.

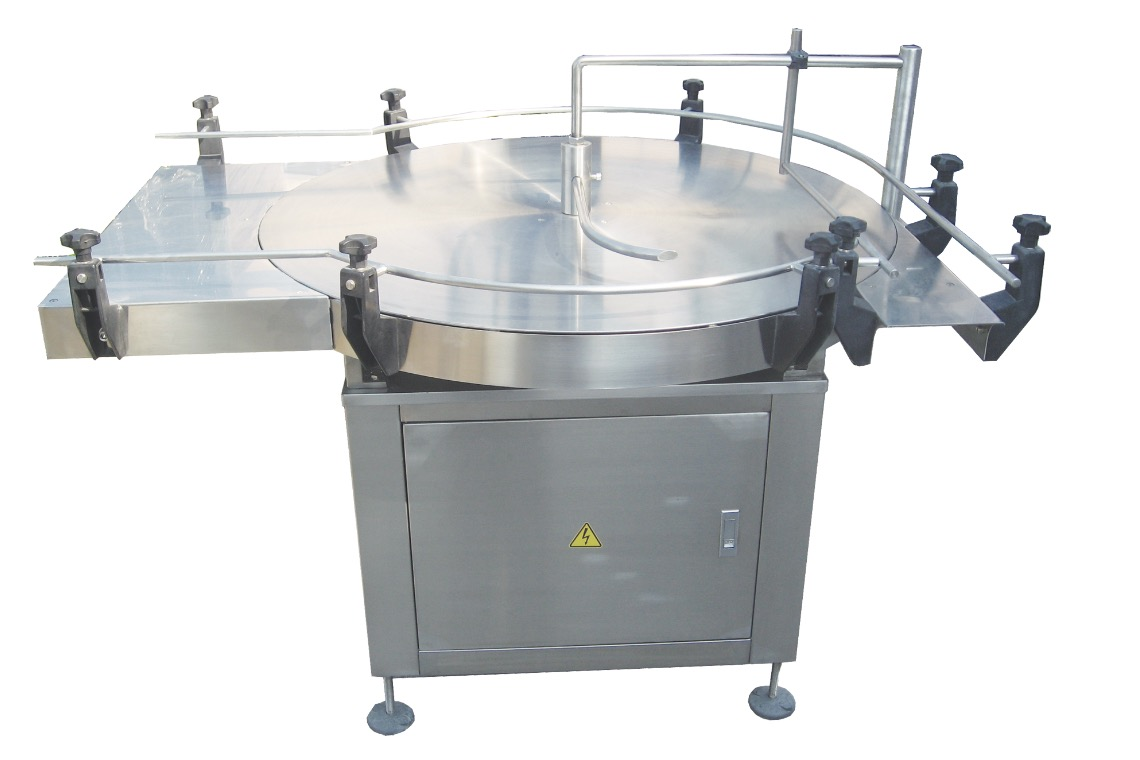

2.Rotary table

The device is manually put the bottles into a rotary table, the turret rotation will continue to dial into the conveyor belt for the next process. It is easy operation and an indispensable part of the production.

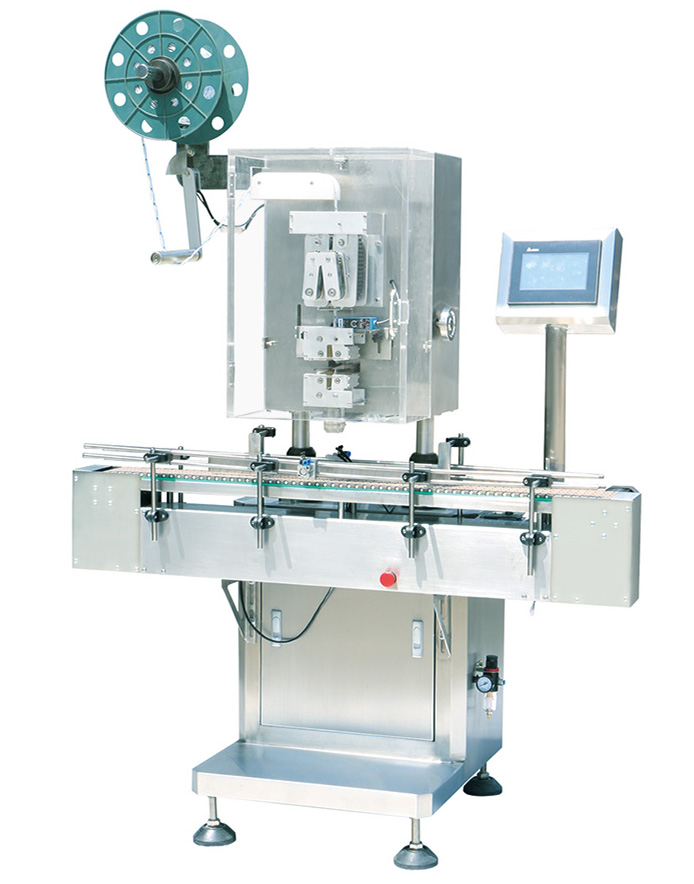

3.Desiccant inserter

The desiccant inserer is an automatic system designed to insert desiccant sachets into pharmaceutical, nutraceutical, or food product packaging. It ensures efficient, accurate and contamination-free placement to extend product shelf life and maintain product quality.

4.Capping machine

This capping machine is fully automatic and with conveyor belt, it can be connected with automatic bottle line for tablets and capsules.The working process including feeding, cap unscrambling, cap conveying, cap putting, cap pressing, cap screwing and bottle discharging.

It is designed in strict accordance with GMP standard and technological requirements. The design and manufacturing principle of this machine is to provide the best, most accurate and most efficient cap screwing work at the highest efficiency. The main drive parts of the machine are placed in the electric cabinet, which helps avoid the pollution to materials due to wear of drive mechanism.

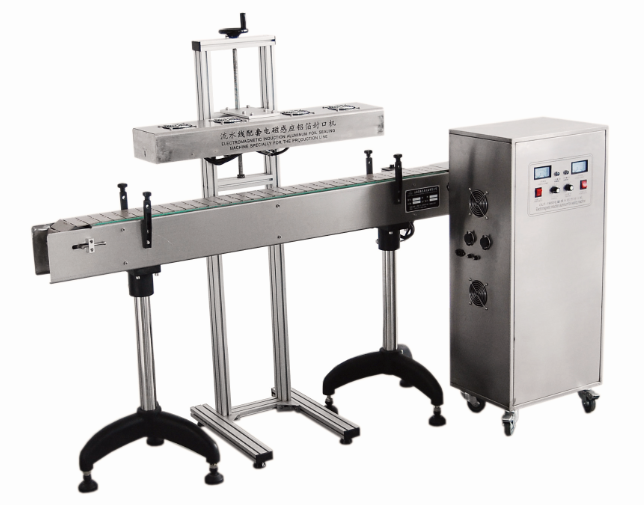

5.Aluminum foil sealer

The aluminum foil sealing machine is a specialized device designed for sealing aluminum foil lids onto the mouths of plastic or glass bottles. It utilizes electromagnetic induction to heat the aluminum foil, which adheres to the bottle mouth to create an airtight, leak-proof, and tamper-evident seal. This ensures product freshness and extends shelf life.

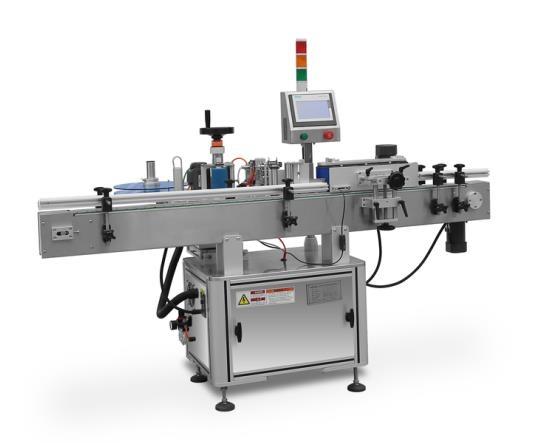

6.Labeling Machine

The self-adhesive labeling machine is an automatic device used to apply self-adhesive labels (also known as stickers) onto various products or packaging surface with round shape. It is widely used in industries such as food and beverage, pharmaceuticals, cosmetics, chemicals, and logistics to ensure accurate, efficient, and consistent labeling.

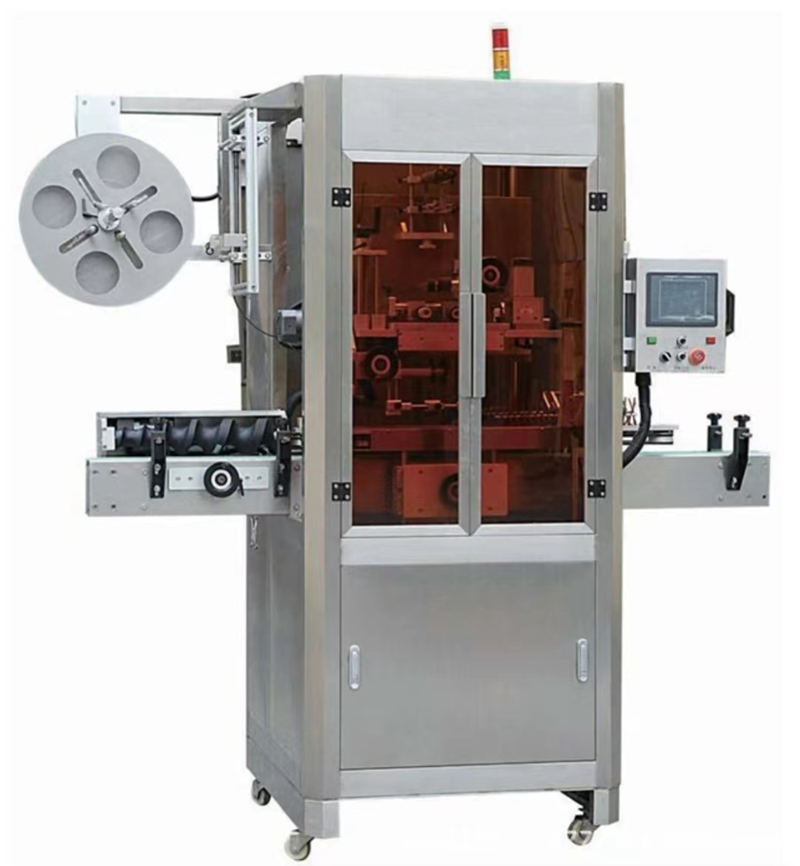

7.Sleeve labeling machine

This sleeve labeling machine is mainly used in food, beverage, pharmaceutical, condiment and fruit juice industries for bottle neck or bottle body labeling and heat shrink.

Labeling principle: when a bottle on the conveyor belt passes through the bottle detection electric eye, the servo control drive group will automatically send the next label, and the next label will be brushed by the blanking wheel group, and this label will be sleeved onto the bottle.
